An Intelligent Superconducting Magnet Power Supply

MercuryiPS

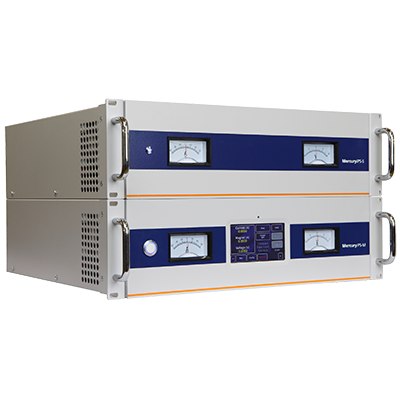

Compatible with all magnet systems, the MercuryiPS is an intelligent, fully configurable magnet power supply for our superconducting magnets.

Level Meter Card

A level-meter card can be configured which is linked to magnet safety interlocks. The level-meter raises an error If the cryogen level falls below a safe level.

Auxiliary Card

Auxiliary cards can be configured into the MercuryiPS. This can be used as an autofill if there is a cryogenic filling system included.

Configurable + Expandable

MercuryiPS can be configured for the specific magnet requirements from 60 A to 600 A, with a variety of auxiliary cards.

For additional product information:

Get A Quote

Features

Based on ±60 A modules with ±10 V compliance.
Can be configured in parallel, series and matrix modes from the basic ±60 A with ±10 V output up to ±600 A with ±10 V or ±300 A with ±20 V output configurations.
Communications support a full range of interface options (Ethernet, USB, RS232, and optional GPIB) with downloadable Mercury function library for LabVIEW.
Quench protection and auto-rundown. The MercuryiPS can be programmed to run the magnet down safely in the event of magnet temperature rise, low cryogen levels or if triggered by an external TTL signal.
The MercuryiPS has an on-board temperature sensor for diagnostic monitoring of the magnet temperature.

Detailed Specifications

Configurable Module Input Interface

Configurable Module

Output current: ± 60 A nominal (± 62.5 A maximum) via rear panel busbar per module
Output voltage: ± 10 V
Output polarity: Bi-polar
Current setting resolution: 0.15 mA
Current resolution: 0.1 mA
Current stability: ± 2 mA

Max sweep rate: 1200 A/min
Min sweep rate: 0.005 A/min
Resolution: 0.01 A/min
Load inductance: Up to 1000 H
Switch heater output: 0 to 120 mA into 0 – 100 Ω (11.5 V compliance limit)
Max steady state power: 600 W

Input

Mains input: 3 pin UL/CSA compliant
Supply voltage: 100 VAC to 240 VAC
Frequency: 50 - 60 Hz

Interface

RS232: With isobus support. Configured as DCE
Ethernet: 10/100 RS422 IEE802.3
USB: Serial port emulation
GPIB: IEEE-488 (Option)
RS485 Modbus: Control between Master and Slave
