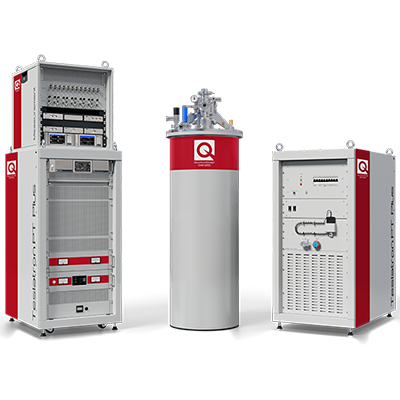

An Open-Architecture, Low Temperature Measurement System

TeslatronPT Plus

Our leading TeslatronPT integrated Cryofree® low temperature system has been significantly upgraded with automated operation and oi.DECS environmental control.

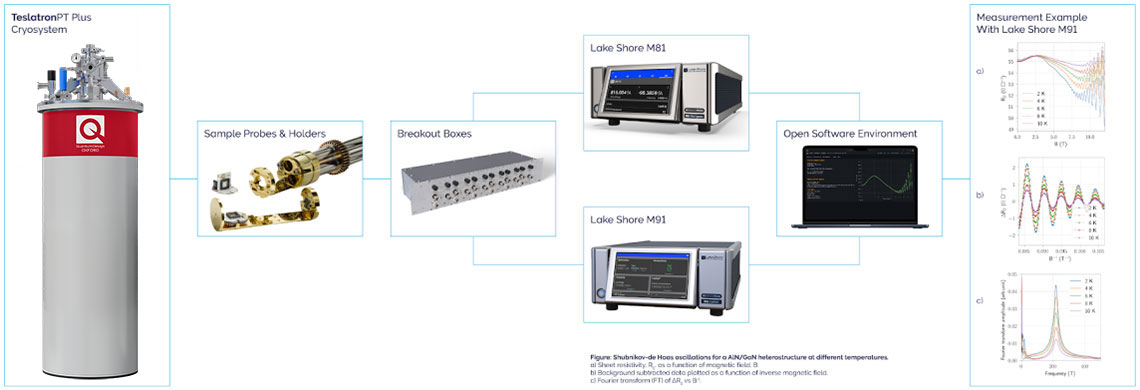

In the new TeslatronPT Plus measurement system, our leading TeslatronPT integrated Cryofree® low temperature system has been significantly upgraded with automated operation and oi.DECS environmental control. We have partnered with Lake Shore to integrate their flagship measurement instrumentation in an open architecture.

The TeslatronPT Plus open-source Python programming environment, easy instrument management, and secure data capture and presentation offer improved ease of use, flexibility, and data confidence in advanced electrical transport measurement at low temperatures and high magnetic fields.

Key Specifications

Magnetic Field Options:	8 T, 12 T, 14 T and 6/1/1 Vector Rotation
Sample Space Diameter:	50 mm
Temperature Range:	1.5 to 300 K
Temperature Stability:	± 50 mK
Sample Cooldown:	< 2 h from room temperature to < 2 K for basic probe loaded into cold VTI

For additional product information:

Contact Our Sales Team

Features

Enables high input/output applications through abundant line-of-sight (LOS) access, with up to a maximum of 128* SMA connectors on a custom Secondary Insert
Automated workflows for system cool down and sample exchange with user-step wizards
oi.DECS browser-based control interface and time-stamped integration to measurement data
High performance Cryofree® superconducting magnets including field vector rotation option
Fine filament Nb₃Sn superconducting wire offers minimum field hysteresis via low remnant field, and minimises flux jumping at low fields
Integrated variable temperature insert (VTI) with large sample space and static exchange gas
Sample space and cooling circuit fully separated to prevent blocking

oi.DECS Software

oi.DECS is an open-architecture cross-platform control software offering an intuitive and easy-to-use browser-based interface. With automated control for consistent results, oi.DECS helps you spend less time on set-up, and more time on your experiments. It also offers network-based access using any browser on any platform, so you can monitor and perform your measurements from your lab or remotely.

Cryostat Control and Monitoring - Full Control of Your System

Securely control TeslatronPT Plus temperatures and magnetic fields from anywhere via a GUI or API. Routine workflows are fully automated and step-through wizards are available where user input is required. Whether you want to customise your notification systems or integrate additional third-party instruments, oi.DECS’ open-architecture along with the availability of system drivers on QCoDeS ensure seamless compatibility.

oi.DECS Measurement Extension for TeslatronPT Plus

oi.DECS Measurement Extension - More Time for Your Experiments

Full measurement solution with a dedicated server complete with:

JupyterHub: Python platform
Editable measurement templates
Optimal performance with Lake Shore M81 and M91
User access management
Seamless integration of 3rd party instruments

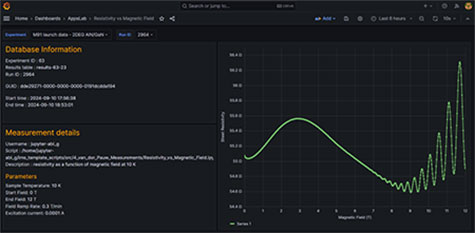

Data Acquisition and Visualisation - Secure Access to All Your Real-Time Data

Temperature, magnetic field and measurement data visualisation and export with Grafana. Your data is fully time-stamped, and can easily be exported or displayed with your own parameters.

Measurement Hardware Accessories

Measurement Instrumentations Breakout Boxes Sample Probes and Holders

Measurement Instrumentations

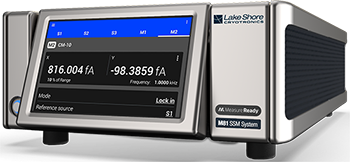

Lake Shore M81 Synchronous Source Measure System

Fully integrated with our open-architecture measurement software
A versatile and modular tool designed for electrical transport measurements
Patented real-time sampling architecture for synchronous sourcing and measuring
Designed for scientific-grade low-level measurement applications
Precision of DC plus the detection sensitivity performance of AC instrumentation up to 100 kHz signals

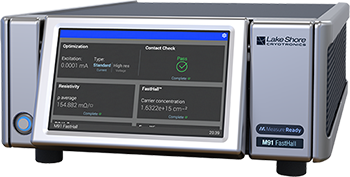

Lake Shore M91 FastHall™ Measurement Controller

Fully integrated with our open-architecture measurement software
Provides complete Hall analysis
Up to 100x faster for low-mobility materials
Improves accuracy by minimising thermal drift

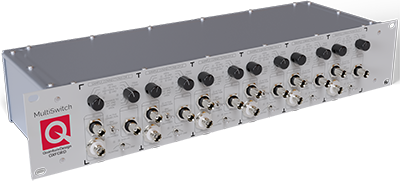

Breakout Boxes

Breakout boxes are a critical element of the signal chain for electrical transport measurements, offering a reliable interface to manage multiple electrical signals with minimal noise and interference. Our IsoSwitch, MultiSwitch, and SampleProtect breakout boxes ensure signal integrity, with versatile grounding options.

Find Out More

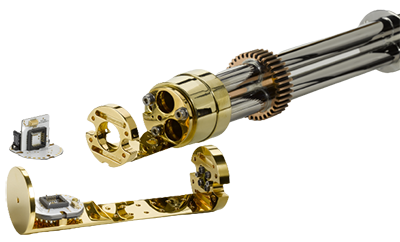

Sample Probes and Holders

Low-noise, ESD-protected Universal Measurement Probe, electrically isolated from cryostat
Shielded twisted pairs with additional driven-guard triax option
Standard LCC20, LCC40, DIL16 sample holders, parallel or perpendicular to the magnetic field
Sample-in-gas and sample-in vacuum options
Basic probe option for user adaptation

Resources

TeslatronPT Plus Brochure
